Regular Wafer Stick Machine

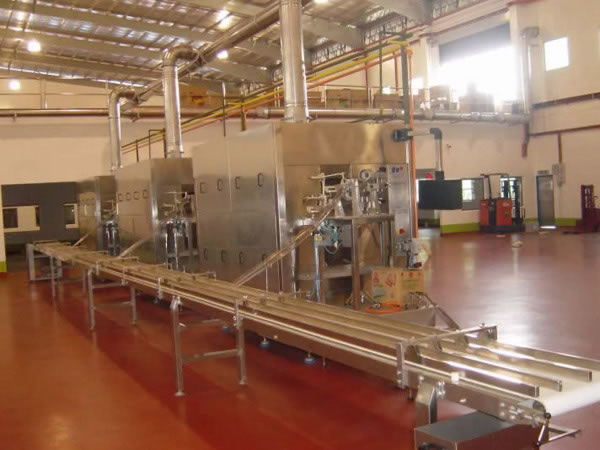

The regular wafer stick machine, or wafer roll machine shown here is a general solution that we provide for common wafer stick production. This industrial food machinery utilizes liquefied petroleum gas or natural gas as its fuel, and can produce center-filled or hollow wafer sticks.
Technical Parameters of Regular Wafer Stick Machine
| Items | Specifications |
| Main Machine Dimension | 2480 × 1800 × 2300 mm |
| Main Machine Weight | 4300kg |
| Batter/Cream Feeder Size (L× W× H) | 800 × 800 × 800mm |
| Cooling Conveyor Dimension (L× W× H) | 4000 × 350 × 950 mm |
| Capacity | 50kg /h (100pcs/min) |
| Power supply | 3-380V, AC |
| Gas type | LPG / natural gas |
| Baking wheel material | Special heat-resistant cast iron alloy |
| Baking wheel diameter | φ 2000mm |
| Mode of bottom heating | Direct fire heating |
| Mode of top heating | Infrared burner from Japan |
| Safety protection method | Cut the burner and alarm automatically by ignition control module |
| Burner cutting method | Pneumatic |
| Forming machine bearing brand | Japan NSK |
| Forming machine motor brand | Taiwan Yusin Gearmotor |
| Frequency converter brand | Japan Panasonic |
| Igniter solenoid valve | Taiwan |
| Ignition controller | Taiwan Kingpin |
| Electrical controller component | France Schneider |
| Main forming machine cover | 304 stainless steel |
| Conveyor cover | 304 stainless steel |

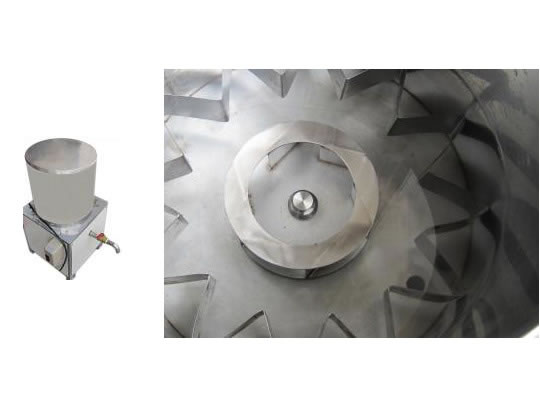

Technical Parameters of 10kg Batter Mixer
| Items | Specifications |
| Mixing capacity | 10 kg /time |
| Power supply | 3-380V, AC |
| Motor power | 2.2kw |
| Material of mixing bowl | 304 stainless steel |
| Material of mixing tool | 304 stainless steel |
| Electrical controller component | France Schneider |
| Cover material | 304 stainless steel |
